Dion U

Product description

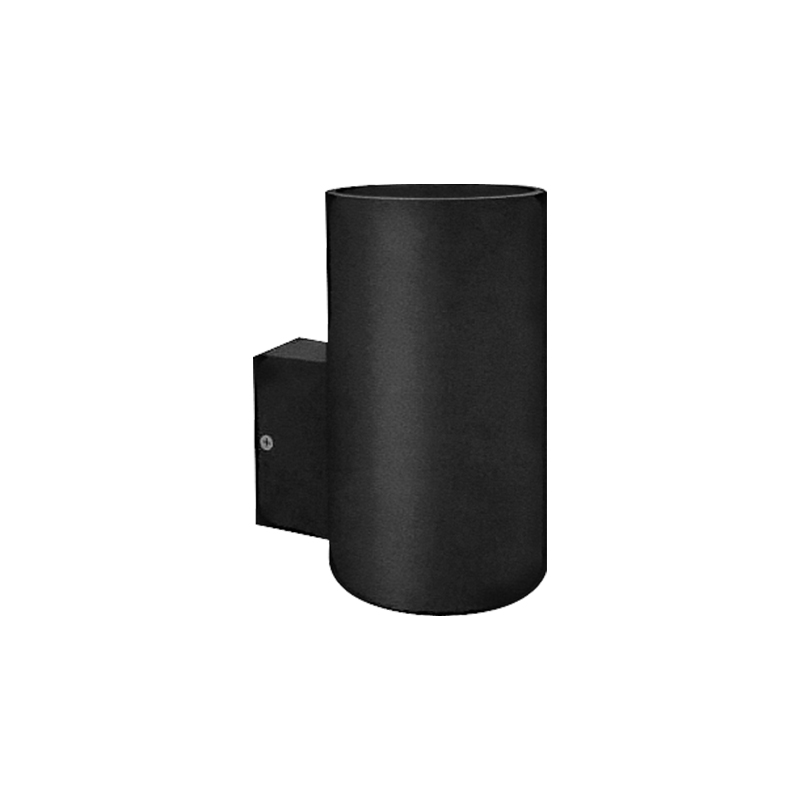

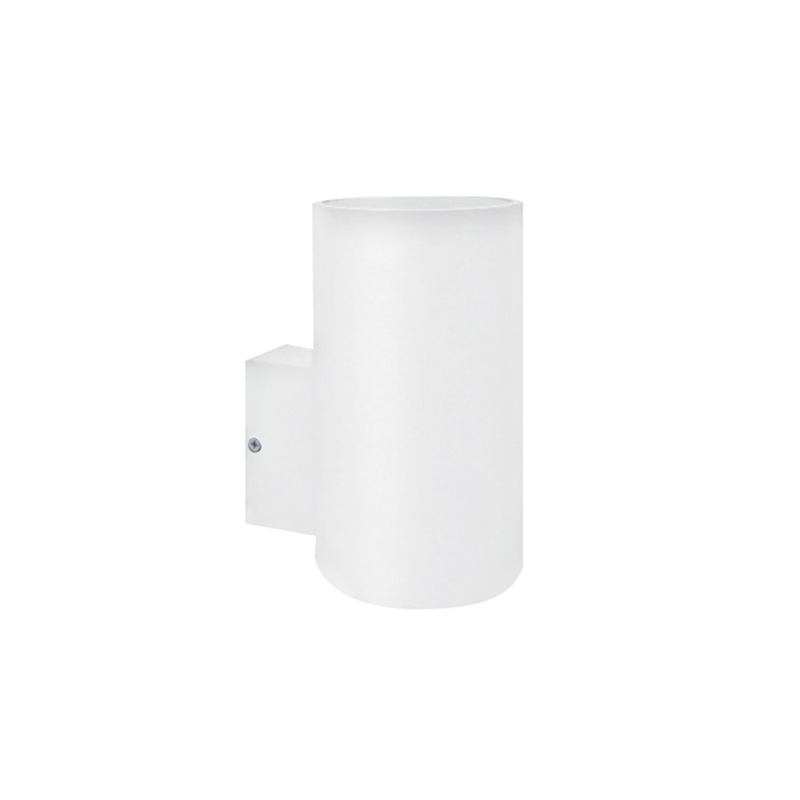

This round shaped wall light provides beautiful accent lighting with direct/indirect distribution of the luminous flux.

It can offer 4 different color temperatures and the high quality build ensures optimal protection from dust and water while still
delivering high efficiency.


• Dion U Non-DALI – the standard for any project

Similar products
Casey / Liwa / Eliot 2 / Dion UD / Attis
Interested in a custom EU made lighting solution for your project? Contact us

Technical data

Power
14W / 20W / 28W
Housing color
RAL 9005 - Jet Black
RAL 9003 - Signal white
Color Rendering
CRI 80
Color Temperature
2700K / 3000K / 3500K / 4000K
Protection class
Safety Class 1
IK Code
IK04
IP Factor
IP54
Housing materials
Aluminium & Glass

Applications & References

Grocery & Supermarket

Selling groceries is a highly competitive business. Consumers have a lot of options on their hands, from small corner shops and specialty stores to large hypermarkets and even online shopping. It’s no wonder that the new competitive edge for retailers, is the customer experience.

Lighting has the power to transform the customer experience and therefore influencing purchases. Light can attract attention, guide the eyes and the footsteps and showcase products at their best in full-color, mouth-watering shades.

> Read more

Retail

Lighting influences desire, purchases and the memory of the shopping experience.

Light is powerful. More powerful than any of us think. In the retail sector light is a decisive factor in helping customers browse, choose, buy and afterward, remember fondly the shopping experience. They may not be able to explain what it was that enchanted them, but we know: it’s the light. Because in retail, the way you showcase items, the visual part of the experience, is one of the most important.

> Read more

Office

How we work and how offices look like as a result, has changed tremendously. From cubicles to open spaces, modular and flexible arrangements – workspace has started to reflect the needs of a more mobile, flat, collaborative workforce that demand comfort and privacy.

LED office lighting has to support several functions, beyond workforce requirements: it can showcase your brand and corporate culture, it can increase productivity, well-being, and happiness and finally, it creates significant savings, both in energy and maintenance effort.

> Read more

Healthcare

Hospitals and other healthcare facilities are one of the most difficult cases among lighting applications. Lighting has to cater to several categories of users while achieving substantial energy efficiencies.

Doctors and nurses have different lighting needs depending on the tasks performed – lighting in operating theaters is very different to that of nurses’ stations. And patients need lighting that is beneficial to their well-being, speeds recovery and preserves safety, particularly at night or for an older demographic.

On the other hand, healthcare facilities are among the most energy-intensive buildings, running 24/7. Thus, energy efficiency is a major source of cost savings, helping managers to direct funds to better medical equipment or training.

LED luminaires have the capacity to fulfill all these roles, being the perfect solution for modern-day hospitals.

> Read more

Industrial & Logistics

Industrial applications are very challenging to illuminate given the sheer variety of tasks and specific requirements. Manufacturing activities vary significantly – a beer factory is totally different to an auto-parts manufacturer or to a high-tech medical appliance factory.

After years of research, we are very aware of the variety of options and applications in the industrial field, thus we are able to use custom, modular, highly efficient LED lighting solutions that fulfill all the roles a state-of-the-art industrial lighting system should encompass.

> Read more

Hospitality

When it comes to hospitality lighting - the sky is the limit. Hotels, restaurants, pubs and resort - all vary a lot in concept, purpose, and design, thus lighting for hospitality is a case by case instance. The main focus should fall on the aesthetics of the place and the wellbeing of the guest, though.

For the hotelier, an added focus is the energy efficiency of the entire system - given that guest are not the most careful when it comes to shutting off lights. In addition, an intelligent lighting management system that enables you to adjust lighting according to presence is a huge benefit. Think of all the large areas that are infrequently visited such as long corridors, stairways, gyms or spas.

> Read more

DIY

Lighting for DIY retailers is similar to that of general retail - in that the purpose of the lighting system is to create a differentiating customer experience and at the same time, trigger purchase impulses to increase revenue.

However, given their sheers size, the type of luminaires used differ from smaller footprint retailers. Here, continuous line or trunking systems are recommended, because they allow for maximum flexibility and, most importantly, simplicity.

> Read more

Parking

LED luminaires built for efficiency and durability.

> Read more

LDT Range

Product code Lumens Efficiency CCT Download
196020 Dion U K110190/2700/14W/80 1505 108 2700 LDT
196021 Dion U K110190/3000/14W/80 1520 109 3000 LDT
196022 Dion U K110190/3500/14W/80 1560 112 3500 LDT
196023 Dion U K110190/4000/14W/80 1590 114 4000 LDT
196024 Dion U K110190/2700/20W/80 1795 90 2700 LDT
196025 Dion U K110190/3000/20W/80 1810 91 3000 LDT
196026 Dion U K110190/3500/20W/80 1860 93 3500 LDT
196027 Dion U K110190/4000/20W/80 1900 95 4000 LDT
196028 Dion U K110190/2700/28W/80 2535 91 2700 LDT
196029 Dion U K110190/3000/28W/80 2560 92 3000 LDT
196030 Dion U K110190/3500/28W/80 2625 94 3500 LDT
196031 Dion U K110190/4000/28W/80 2680 96 4000 LDT

Technical Specifications

Dion U Non-DALI Series


Installation Guides

Dion U
