Casey

Product description

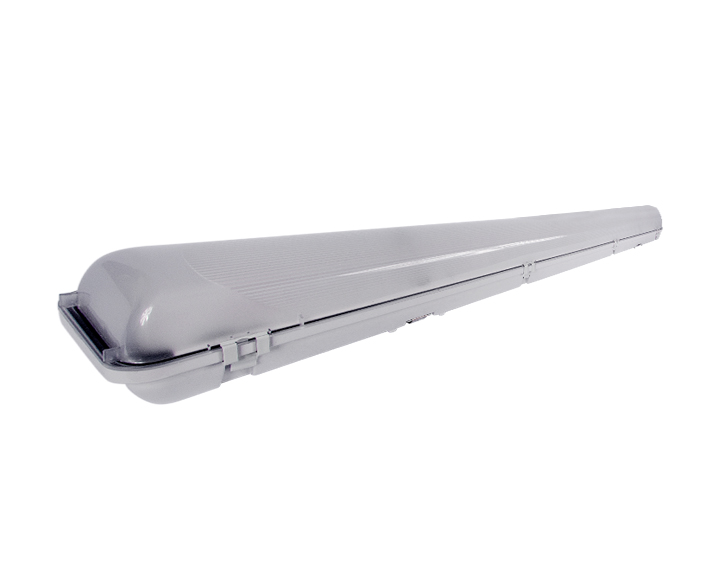

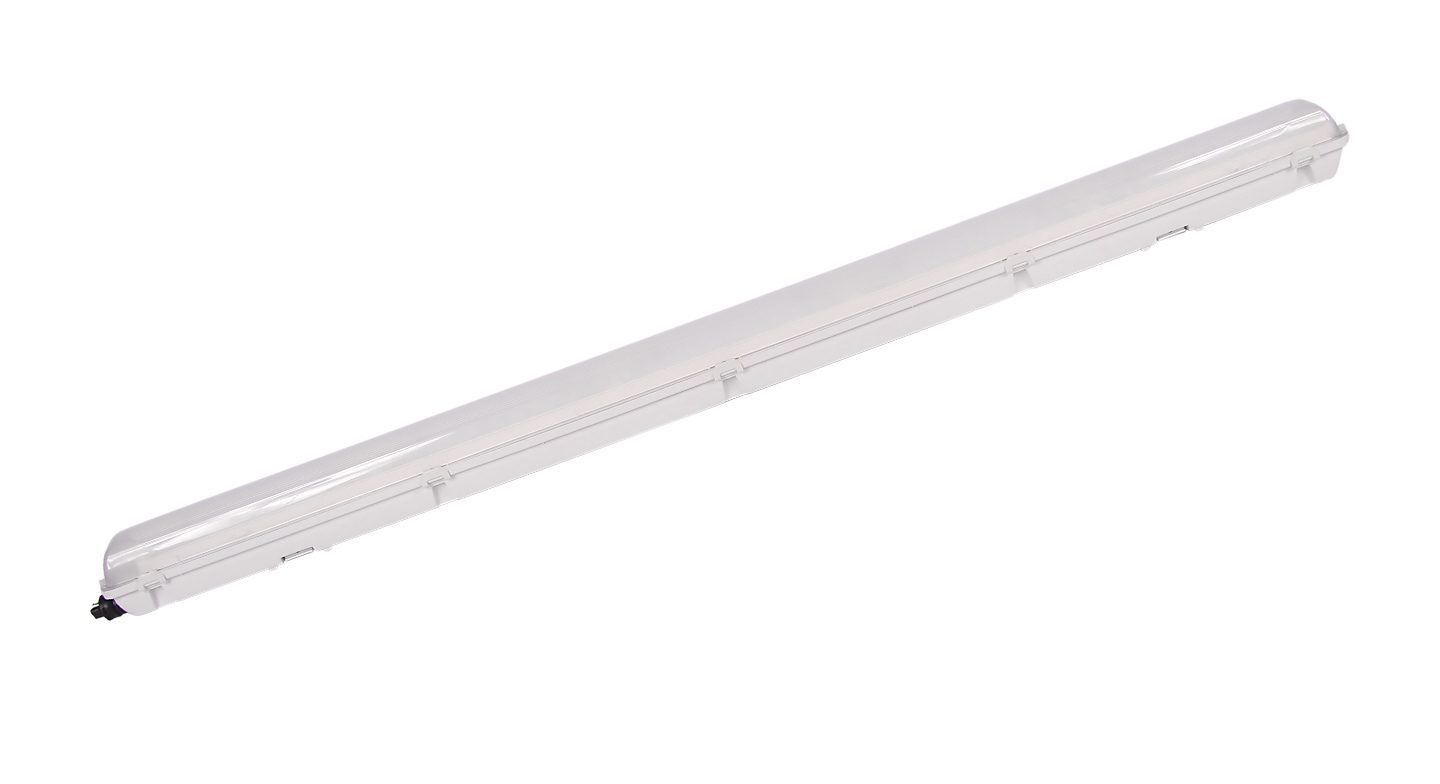

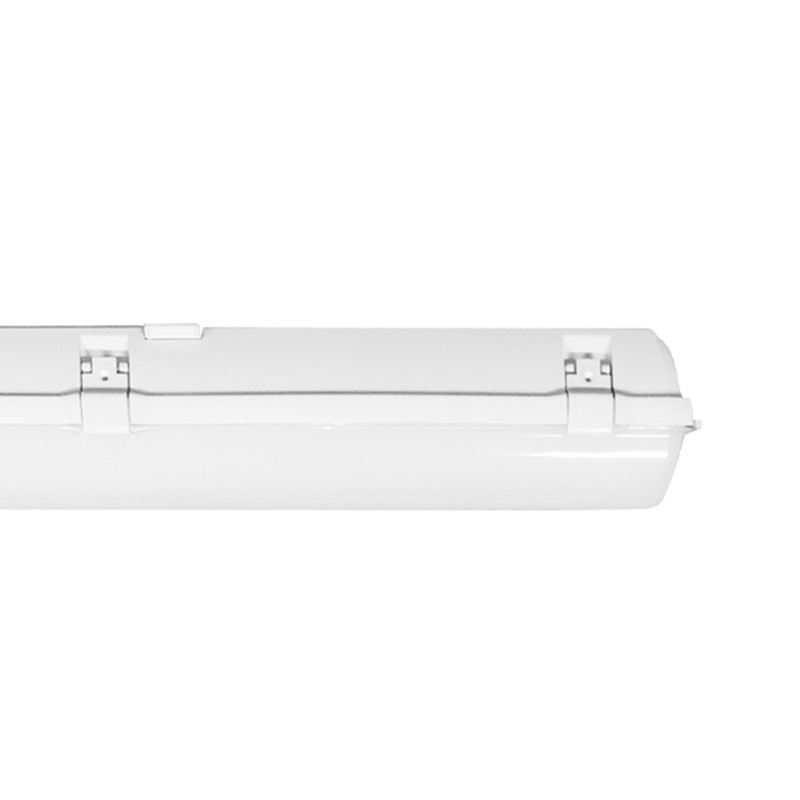

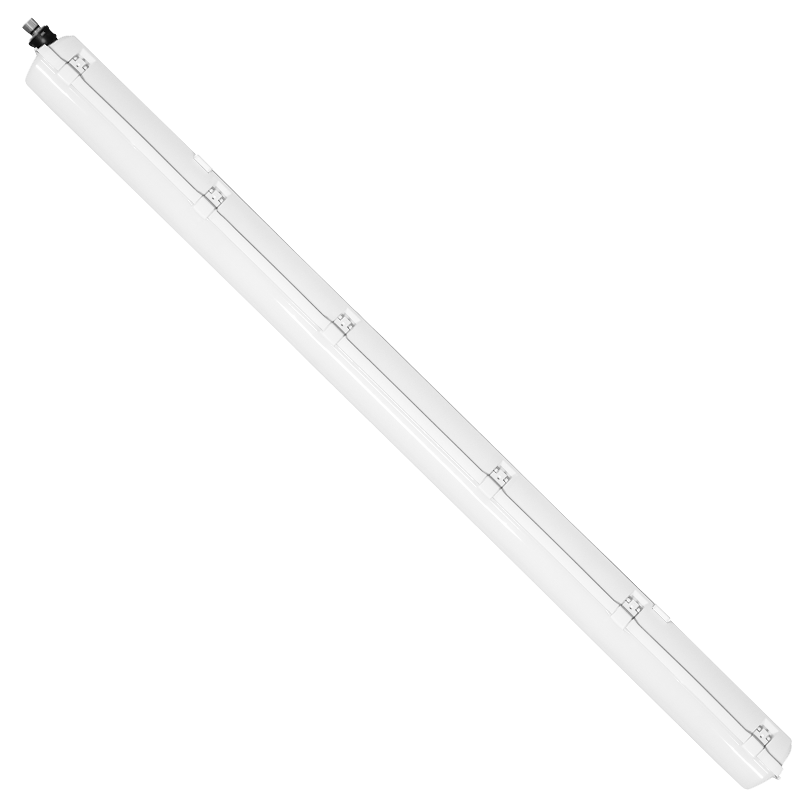

A surface-mounted, waterproof lighting fixture suitable for industrial applications. It has a wide beam angle of 130 degrees. Clips can be spaced at any position along the entire length of the luminaire for custom mounting options. Suitable for use in damp or dusty conditions thanks to the extra protection factor.

Low-maintenance luminaire that is easy to clean and offers few surfaces on which dirt can settle. High energy-saving potential, even for extensively used lighting needs in spaces such as logistic and industrial, warehouses.

Housing made of curved-lines polycarbonate and equipped with high quality polyurethane gasket for high durability. With an IP65 protection factor.

Casey damp-proof luminaires come in several series, with various add-on and controls:

  • Casey TEC – the standard for any project in the retail sectors, works down to -10 degrees Celsius
  • Casey TEC-EM – series with emergency lighting kit, works down to +5 degrees Celsius
  • Casey ECO – with DALI controls for dimming, works down to -25 degrees Celsius
  • Casey BZ - with special adaptation for very cold environments, operational down to -25 degrees Celsius

Features and Benefits

  • CRI 80 as standard
  • 4 color temperatures: 3000K, 4000K, 5000K and 6500K
  • Long rated life – L90/B10 at 50,000h
  • High luminaire efficiency: 155 lm/W @4000K
Similar products
Liwa / Eliot 2 / Dion U / Dion UD / Attis
Interested in a custom EU made lighting solution for your project? Contact us

Technical data

Dimensions
665x101x101 mm / 1282 x 101 x 101 mm / 1578 x 101 x 101 mm
Power
8W / 15W
Housing color
RAL 7035 - Light Grey
Color Rendering
CRI 80
Color Temperature
3000K / 4000K / 5000K / 6500K
Protection class
Safety Class 1
IK Code
IK08
IP Factor
IP65
Housing materials
Polycarbonate

Applications & References

Grocery & Supermarket

Selling groceries is a highly competitive business. Consumers have a lot of options on their hands, from small corner shops and specialty stores to large hypermarkets and even online shopping. It’s no wonder that the new competitive edge for retailers, is the customer experience.

Lighting has the power to transform the customer experience and therefore influencing purchases. Light can attract attention, guide the eyes and the footsteps and showcase products at their best in full-color, mouth-watering shades.

> Read more

Office

How we work and how offices look like as a result, has changed tremendously. From cubicles to open spaces, modular and flexible arrangements – workspace has started to reflect the needs of a more mobile, flat, collaborative workforce that demand comfort and privacy.

LED office lighting has to support several functions, beyond workforce requirements: it can showcase your brand and corporate culture, it can increase productivity, well-being, and happiness and finally, it creates significant savings, both in energy and maintenance effort.

> Read more

Healthcare

Hospitals and other healthcare facilities are one of the most difficult cases among lighting applications. Lighting has to cater to several categories of users while achieving substantial energy efficiencies.

Doctors and nurses have different lighting needs depending on the tasks performed – lighting in operating theaters is very different to that of nurses’ stations. And patients need lighting that is beneficial to their well-being, speeds recovery and preserves safety, particularly at night or for an older demographic.

On the other hand, healthcare facilities are among the most energy-intensive buildings, running 24/7. Thus, energy efficiency is a major source of cost savings, helping managers to direct funds to better medical equipment or training.

LED luminaires have the capacity to fulfill all these roles, being the perfect solution for modern-day hospitals.

> Read more

Industrial & Logistics

Industrial applications are very challenging to illuminate given the sheer variety of tasks and specific requirements. Manufacturing activities vary significantly – a beer factory is totally different to an auto-parts manufacturer or to a high-tech medical appliance factory.

After years of research, we are very aware of the variety of options and applications in the industrial field, thus we are able to use custom, modular, highly efficient LED lighting solutions that fulfill all the roles a state-of-the-art industrial lighting system should encompass.

> Read more

Hospitality

When it comes to hospitality lighting - the sky is the limit. Hotels, restaurants, pubs and resort - all vary a lot in concept, purpose, and design, thus lighting for hospitality is a case by case instance. The main focus should fall on the aesthetics of the place and the wellbeing of the guest, though.

For the hotelier, an added focus is the energy efficiency of the entire system - given that guest are not the most careful when it comes to shutting off lights. In addition, an intelligent lighting management system that enables you to adjust lighting according to presence is a huge benefit. Think of all the large areas that are infrequently visited such as long corridors, stairways, gyms or spas.

> Read more

Parking

LED luminaires built for efficiency and durability.

> Read more

LDT Range

Product code Lumens Efficiency CCT Download
103000 Casey TEC60/IP65/3000/8W/80 760 95 3000 LDT
103001 Casey TEC60/IP65/4000/8W/80 780 98 4000 LDT
103002 Casey TEC60/IP65/5000/8W/80 820 103 5000 LDT
103003 Casey TEC60/IP65/6500/8W/80 800 100 6500 LDT
103005 Casey TEC60/IP65/4000/15W/80 1430 96 4000 LDT
103004 Casey TEC60/IP65/3000/15W/80 1390 93 3000 LDT
103006 Casey TEC60/IP65/5000/15W/80 1470 98 5000 LDT
103007 Casey TEC60/IP65/6500/15W/80 1450 97 6500 LDT
