Myriaky 2
Product description
High-performance and durable outdoor luminaire, designed for meeting the parking spaces and industrial applications lighting requirements. Low-maintenance and waterproof thanks to high IP factor. Suitable for industrial spaces, parking areas and billboards. Large range of beam angles from very tight 30°, to very wide 150°.

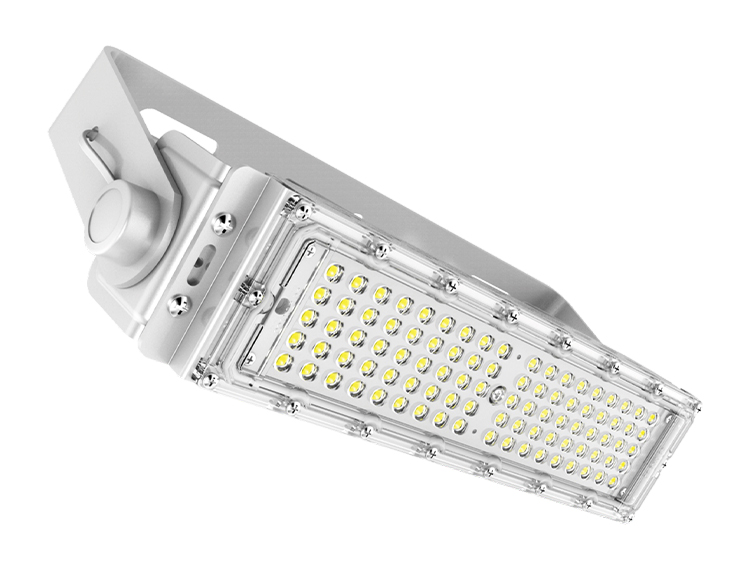

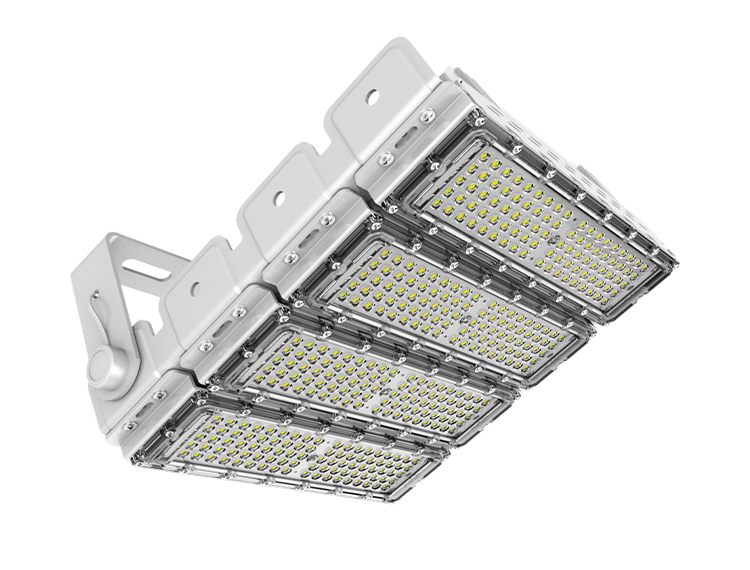

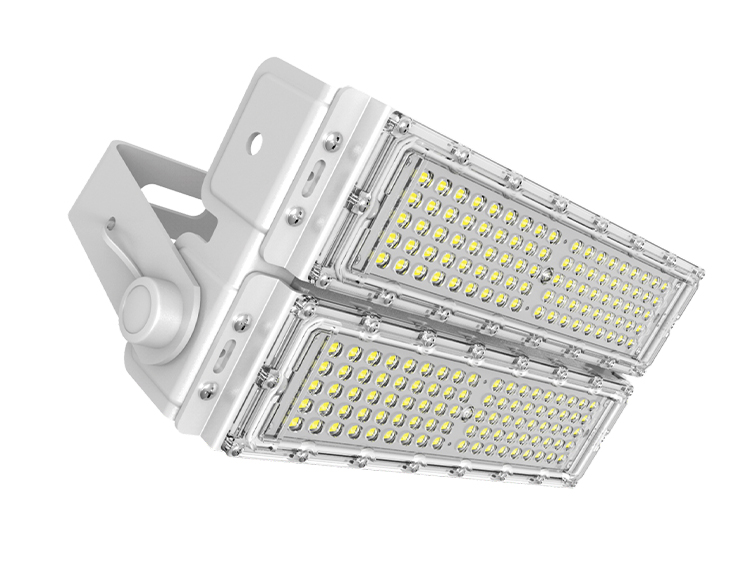

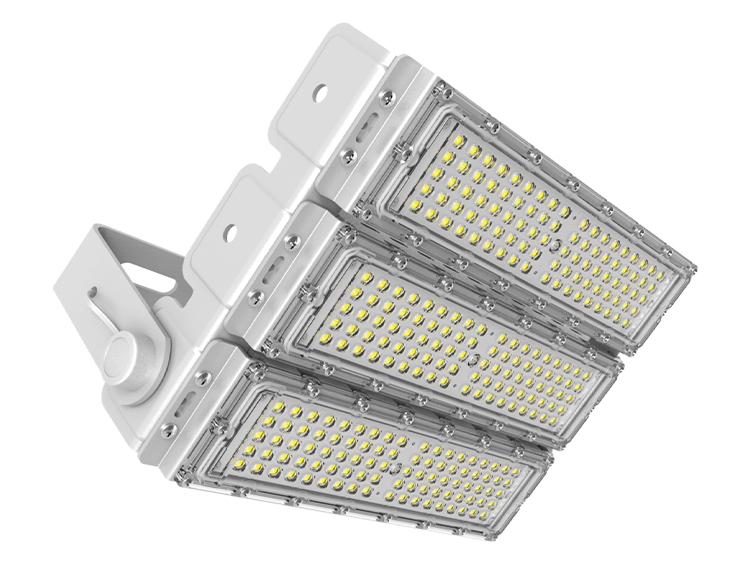

Available in three dimensions with 1, 2 or 3 modules. Sleek housing in gray for a perfect blend with the environment.
Features and Benefits
- CRI 70 as standard
- 3 color temperatures: 3000K, 4000K and 6500K
- Wide range of lens angles: 30°, 60°, 90°, 150°
- High IP factor: 65
- High efficiency: 134 lm/w@4000K
Similar products
Starkly 2 / Lucella
Interested in a custom EU made lighting solution for your project?
Contact us
Technical data
Dimensions
1 module: 298x110x145mm / 2 modules: 298x230x145mm / 3 modules: 298x340x145mm
1 module: 298x110x145mm / 2 modules: 298x230x145mm / 3 modules: 298x340x145mm
Working Temperature
-40C...+65C/-40F...+149F
-40C...+65C/-40F...+149F
Power
30W / 50W / 60W / 70W / 80W / 90W / 100W / 115W / 135W / 155W / 175W / 190W / 210W
30W / 50W / 60W / 70W / 80W / 90W / 100W / 115W / 135W / 155W / 175W / 190W / 210W
Housing color
Grey
Grey
Color Rendering
CRI 70
CRI 70
Color Temperature
4000K / 6500K
4000K / 6500K
Protection class
Safety Class 1
Safety Class 1
IK Code
IK08
IK08
IP Factor
IP65
IP65
Housing materials
Aluminium & Polycarbonate
Aluminium & Polycarbonate
Applications & References
Industrial & Logistics
Industrial applications are very challenging to illuminate given the sheer variety of tasks and specific requirements. Manufacturing activities vary significantly – a beer factory is totally different to an auto-parts manufacturer or to a high-tech medical appliance factory.
After years of research, we are very aware of the variety of options and applications in the industrial field, thus we are able to use custom, modular, highly efficient LED lighting solutions that fulfill all the roles a state-of-the-art industrial lighting system should encompass.
> Read more
LDT Range
| Product code | Lumens | Efficiency | CCT | Download |
|---|---|---|---|---|
| 120000 Myriaky 4000/30W/70/A15 | 3750 | 125 | 4000 | LDT |
| 120001 Myriaky 6500/30W/70/A15 | 3940 | 132 | 6500 | LDT |
| 120002 Myriaky 4000/30W/70/A30 | 3750 | 125 | 4000 | LDT |
| 120003 Myriaky 6500/30W/70/A30 | 3940 | 132 | 6500 | LDT |
| 120004 Myriaky 4000/30W/70/A75 | 3750 | 125 | 4000 | LDT |
| 120005 Myriaky 6500/30W/70/A75 | 3940 | 132 | 6500 | LDT |
| 120006 Myriaky 4000/30W/70/A130 | 3750 | 125 | 4000 | LDT |
| 120007 Myriaky 6500/30W/70/A130 | 3940 | 132 | 6500 | LDT |
| 120008 Myriaky 4000/50W/70/A15 | 6000 | 120 | 4000 | LDT |
| 120009 Myriaky 6500/50W/70/A15 | 6300 | 126 | 6500 | LDT |
| 120010 Myriaky 4000/50W/70/A30 | 6000 | 120 | 4000 | LDT |
| 120011 Myriaky 6500/50W/70/A30 | 6300 | 126 | 6500 | LDT |
| 120012 Myriaky 4000/50W/70/A75 | 6000 | 120 | 4000 | LDT |
| 120013 Myriaky 6500/50W/70/A75 | 6300 | 126 | 6500 | LDT |
| 120014 Myriaky 4000/50W/70/A130 | 6000 | 120 | 4000 | LDT |
| 120015 Myriaky 6500/50W/70/A130 | 6300 | 126 | 6500 | LDT |
| 120016 Myriaky 4000/60W/70/A15 | 7410 | 124 | 4000 | LDT |
| 120017 Myriaky 6500/60W/70/A15 | 7800 | 130 | 6500 | LDT |
| 120018 Myriaky 4000/60W/70/A30 | 7410 | 124 | 4000 | LDT |
| 120019 Myriaky 6500/60W/70/A30 | 7800 | 130 | 6500 | LDT |
| 120020 Myriaky 4000/60W/70/A75 | 7410 | 124 | 4000 | LDT |
| 120021 Myriaky 6500/60W/70/A75 | 7800 | 130 | 6500 | LDT |
| 120022 Myriaky 4000/60W/70/A130 | 7410 | 124 | 4000 | LDT |
| 120023 Myriaky 6500/60W/70/A130 | 7800 | 130 | 6500 | LDT |
| 120024 Myriaky 4000/70W/70/A15 | 8380 | 120 | 4000 | LDT |
| 120025 Myriaky 6500/70W/70/A15 | 8820 | 126 | 6500 | LDT |
| 120026 Myriaky 4000/70W/70/A30 | 8380 | 120 | 4000 | LDT |
| 120027 Myriaky 6500/70W/70/A30 | 8820 | 126 | 6500 | LDT |
| 120028 Myriaky 4000/70W/70/A75 | 8380 | 120 | 4000 | LDT |
| 120029 Myriaky 6500/70W/70/A75 | 8820 | 126 | 6500 | LDT |
| 120030 Myriaky 4000/70W/70/A130 | 8380 | 120 | 4000 | LDT |
| 120031 Myriaky 6500/70W/70/A130 | 8820 | 126 | 6500 | LDT |
| 120032 Myriaky 4000/80W/70/A15 | 9350 | 117 | 4000 | LDT |
| 120033 Myriaky 6500/80W/70/A15 | 9840 | 123 | 6500 | LDT |
| 120034 Myriaky 4000/80W/70/A30 | 9350 | 117 | 4000 | LDT |
| 120035 Myriaky 6500/80W/70/A30 | 9840 | 123 | 6500 | LDT |
| 120036 Myriaky 4000/80W/70/A75 | 9350 | 117 | 4000 | LDT |
| 120037 Myriaky 6500/80W/70/A75 | 9840 | 123 | 6500 | LDT |
| 120038 Myriaky 4000/80W/70/A130 | 9350 | 117 | 4000 | LDT |
| 120039 Myriaky 6500/80W/70/A130 | 9840 | 123 | 6500 | LDT |
| 120040 Myriaky 4000/90W/70/A15 | 10260 | 114 | 4000 | LDT |
| 120041 Myriaky 6500/90W/70/A15 | 10800 | 120 | 6500 | LDT |
| 120042 Myriaky 4000/90W/70/A30 | 10260 | 114 | 4000 | LDT |
| 120043 Myriaky 6500/90W/70/A30 | 10800 | 120 | 6500 | LDT |
| 120044 Myriaky 4000/90W/70/A75 | 10260 | 114 | 4000 | LDT |
| 120045 Myriaky 6500/90W/70/A75 | 10800 | 120 | 6500 | LDT |
| 120046 Myriaky 4000/90W/70/A130 | 10260 | 114 | 4000 | LDT |
| 120047 Myriaky 6500/90W/70/A130 | 10800 | 120 | 6500 | LDT |
| 120056 Myriaky 4000/100W/70/A15 | 12350 | 124 | 4000 | LDT |
| 120057 Myriaky 6500/100W/70/A15 | 13000 | 130 | 6500 | LDT |
| 120058 Myriaky 4000/100W/70/A30 | 12350 | 124 | 4000 | LDT |
| 120059 Myriaky 6500/100W/70/A30 | 13000 | 130 | 6500 | LDT |
| 120060 Myriaky 4000/100W/70/A75 | 12350 | 124 | 4000 | LDT |
| 120061 Myriaky 6500/100W/70/A75 | 13000 | 130 | 6500 | LDT |
| 120062 Myriaky 4000/100W/70/A130 | 12350 | 124 | 4000 | LDT |
| 120063 Myriaky 6500/100W/70/A130 | 13000 | 130 | 6500 | LDT |
| 120064 Myriaky 4000/115W/70/A15 | 13770 | 120 | 4000 | LDT |
| 120065 Myriaky 6500/115W/70/A15 | 14490 | 126 | 6500 | LDT |
| 120066 Myriaky 4000/115W/70/A30 | 13770 | 120 | 4000 | LDT |
| 120067 Myriaky 6500/115W/70/A30 | 14490 | 126 | 6500 | LDT |
| 120068 Myriaky 4000/115W/70/A75 | 13770 | 120 | 4000 | LDT |
| 120069 Myriaky 6500/115W/70/A75 | 14490 | 126 | 6500 | LDT |
| 120070 Myriaky 4000/115W/70/A130 | 13770 | 120 | 4000 | LDT |
| 120071 Myriaky 6500/115W/70/A130 | 14490 | 126 | 6500 | LDT |
| 120072 Myriaky 4000/135W/70/A15 | 15775 | 117 | 4000 | LDT |
| 120073 Myriaky 6500/135W/70/A15 | 16605 | 123 | 6500 | LDT |
| 120074 Myriaky 4000/135W/70/A30 | 15775 | 117 | 4000 | LDT |
| 120075 Myriaky 6500/135W/70/A30 | 16605 | 123 | 6500 | LDT |
| 120076 Myriaky 4000/135W/70/A75 | 15775 | 117 | 4000 | LDT |
| 120077 Myriaky 6500/135W/70/A75 | 16605 | 123 | 6500 | LDT |
| 120078 Myriaky 4000/135W/70/A130 | 15775 | 117 | 4000 | LDT |
| 120079 Myriaky 6500/135W/70/A130 | 16605 | 123 | 4000 | LDT |
| 120080 Myriaky 4000/155W/70/A15 | 17670 | 114 | 4000 | LDT |
| 120081 Myriaky 6500/155W/70/A15 | 18600 | 120 | 6500 | LDT |
| 120082 Myriaky 4000/155W/70/A30 | 17670 | 114 | 4000 | LDT |
| 120083 Myriaky 6500/155W/70/A30 | 18600 | 120 | 6500 | LDT |
| 120084 Myriaky 4000/155W/70/A75 | 17670 | 114 | 4000 | LDT |
| 120085 Myriaky 6500/155W/70/A75 | 18600 | 120 | 6500 | LDT |
| 120086 Myriaky 4000/155W/70/A130 | 17670 | 114 | 4000 | LDT |
| 120087 Myriaky 6500/155W/70/A130 | 18600 | 120 | 6500 | LDT |
| 120096 Myriaky 4000/175W/70/A15 | 20950 | 120 | 4000 | LDT |
| 120097 Myriaky 6500/175W/70/A15 | 22050 | 126 | 6500 | LDT |
| 120098 Myriaky 4000/175W/70/A30 | 20950 | 120 | 4000 | LDT |
| 120099 Myriaky 6500/175W/70/A30 | 22050 | 126 | 6500 | LDT |
| 120100 Myriaky 4000/175W/70/A75 | 20950 | 120 | 4000 | LDT |
| 120101 Myriaky 6500/175W/70/A75 | 22050 | 126 | 6500 | LDT |
| 120102 Myriaky 4000/175W/70/A130 | 20950 | 120 | 4000 | LDT |
| 120103 Myriaky 6500/175W/70/A130 | 22050 | 126 | 6500 | LDT |
| 120104 Myriaky 4000/190W/70/A15 | 22205 | 117 | 4000 | LDT |
| 120105 Myriaky 6500/190W/70/A15 | 23370 | 123 | 6500 | LDT |
| 120106 Myriaky 4000/190W/70/A30 | 22205 | 117 | 4000 | LDT |
| 120107 Myriaky 6500/190W/70/A30 | 23370 | 123 | 6500 | LDT |
| 120108 Myriaky 4000/190W/70/A75 | 22205 | 117 | 4000 | LDT |
| 120109 Myriaky 6500/190W/70/A75 | 23370 | 123 | 6500 | LDT |
| 120110 Myriaky 4000/190W/70/A130 | 22205 | 117 | 4000 | LDT |
| 120111 Myriaky 6500/190W/70/A130 | 23370 | 123 | 6500 | LDT |
| 120112 Myriaky 4000/210W/70/A15 | 23940 | 114 | 4000 | LDT |
| 120113 Myriaky 6500/210W/70/A15 | 25200 | 120 | 6500 | LDT |
| 120114 Myriaky 4000/210W/70/A30 | 23940 | 114 | 4000 | LDT |
| 120115 Myriaky 6500/210W/70/A30 | 25200 | 120 | 6500 | LDT |
| 120116 Myriaky 4000/210W/70/A75 | 23940 | 114 | 4000 | LDT |
| 120117 Myriaky 6500/210W/70/A75 | 25200 | 120 | 6500 | LDT |
| 120118 Myriaky 4000/210W/70/A130 | 23940 | 114 | 4000 | LDT |
| 120119 Myriaky 6500/210W/70/A130 | 25200 | 120 | 6500 | LDT |
