Lenyk N IL TRK

Product description

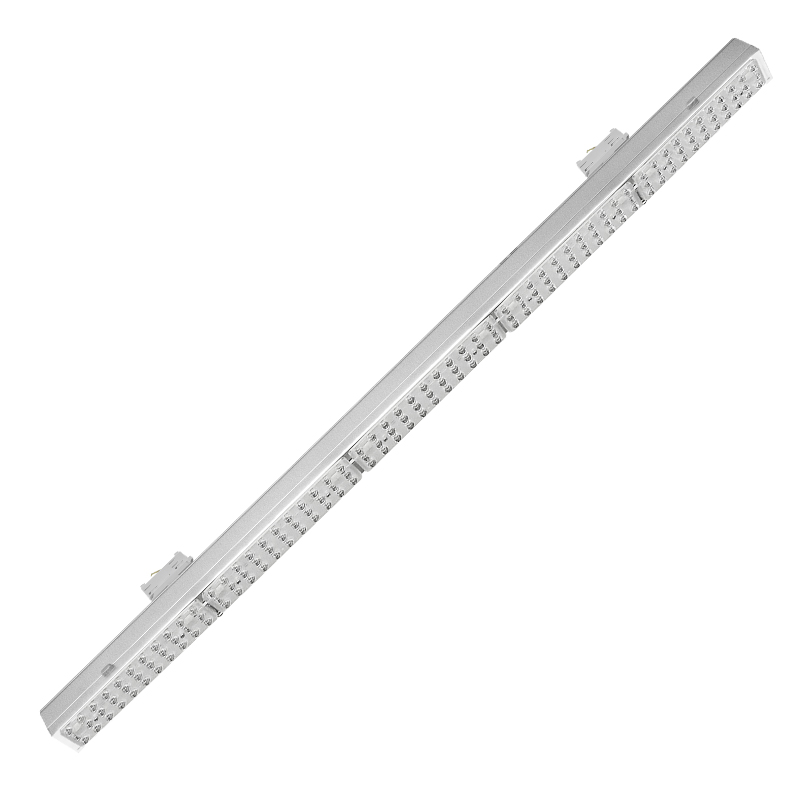

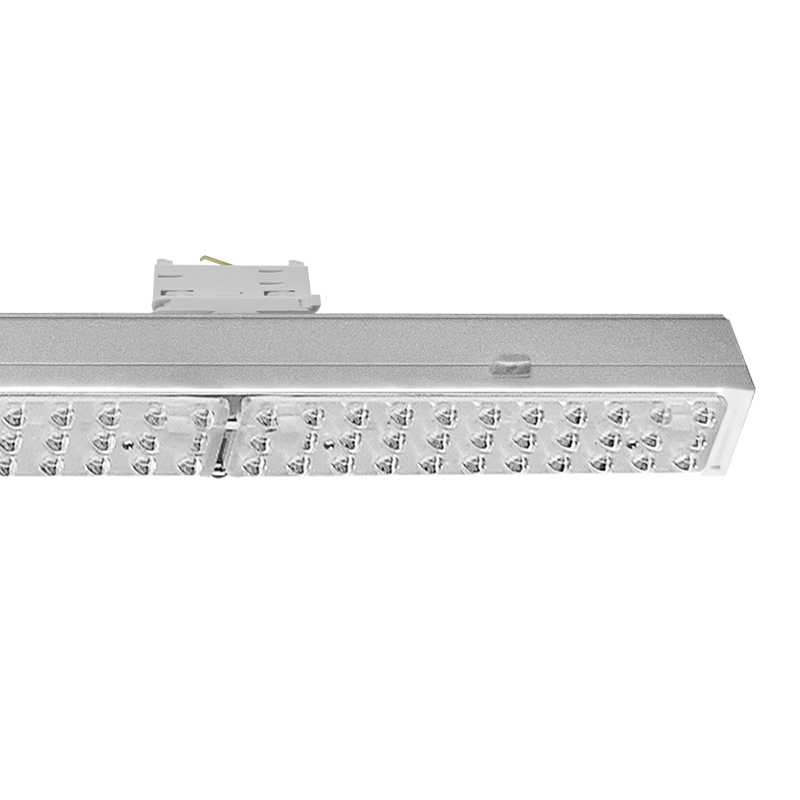

A sleek track-mounted luminaire that delivers uniform lighting for industrial and retail applications. It can be mounted in continuous rows for an impressive effect. The luminaire has a new and modern aluminium housing, while featuring very high efficiency (171 lm/W). It delivers high lighting quality and comes equipped with a wide range of beam angles, from the narrowest to the widest. Lenyk N IL TRK also features double and simple-asymmetric beams for a perfect spread of light across the shelves without wasting it on the corridors.

Lenyk N IL TRK has several series, determined by various add-on and controls:

  • Lenyk N IL TRK Non-DALI: the standard for industrial, DIY and retail spaces
  • Lenyk N IL TRK DALI: with DALI dimming

Features and Benefits

  • CRI 80 as standard
  • 4 color temperatures: 3000K, 4000K, 5000K and 6500K
  • Long rated life: L90/B10@50.000h
  • Very high efficiency: 171 lm/w @4000K
  • Wide range of lens angles: TB (30°), NB (60°), WB (90°), DA (Double Asymmetric), SA (Simple Asymmetric)
Similar products
Ennio TRK PC / Artus N TRK / Galaxy Slim TRK / Light Blade / Lenyk Slim TRK / Lenyk IL TRK / Lenyk PC TRK
Interested in a custom EU made lighting solution for your project? Contact us

Technical data

Dimensions
636 x 125.1 x 84,1 mm / 1230 x 125.1 x 84,1 mm / 1527 x 125.1 x 84,1 mm
Working Temperature
-20C°... +45C° / -4F ... +113F
Housing color
Anodised grey
Color Rendering
CRI 80
Protection class
Safety Class 1
IK Code
IK04
IP Factor
IP20
Housing materials
Aluminium & Polycarbonate

Applications & References

Grocery & Supermarket

Selling groceries is a highly competitive business. Consumers have a lot of options on their hands, from small corner shops and specialty stores to large hypermarkets and even online shopping. It’s no wonder that the new competitive edge for retailers, is the customer experience.

Lighting has the power to transform the customer experience and therefore influencing purchases. Light can attract attention, guide the eyes and the footsteps and showcase products at their best in full-color, mouth-watering shades.

> Read more

Retail

Lighting influences desire, purchases and the memory of the shopping experience.

Light is powerful. More powerful than any of us think. In the retail sector light is a decisive factor in helping customers browse, choose, buy and afterward, remember fondly the shopping experience. They may not be able to explain what it was that enchanted them, but we know: it’s the light. Because in retail, the way you showcase items, the visual part of the experience, is one of the most important.

> Read more

DIY

Lighting for DIY retailers is similar to that of general retail - in that the purpose of the lighting system is to create a differentiating customer experience and at the same time, trigger purchase impulses to increase revenue.

However, given their sheers size, the type of luminaires used differ from smaller footprint retailers. Here, continuous line or trunking systems are recommended, because they allow for maximum flexibility and, most importantly, simplicity.

> Read more

Technical Specifications

Lenyk N IL TRK - DALI Series Lenyk N IL TRK - Non-DALI Series


Installation Guides

Lenyk N IL TRK


Catalogues

Track Collection


3D-Sketchup

Lenyk N IL TRK
