Chase
Product description
Chase is a track spotlight with a sleek and modern design. Can be equipped with a wide range of color special temperatures. Die-cast aluminum housing. Particularly suitable for accent lighting in retail and commercial spaces with 5 optics variants.

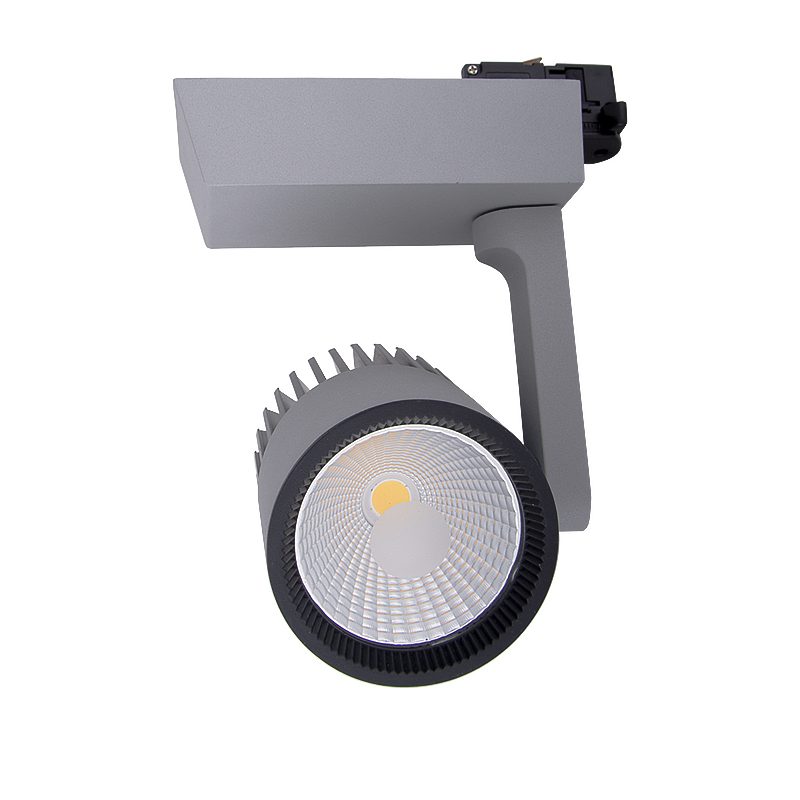

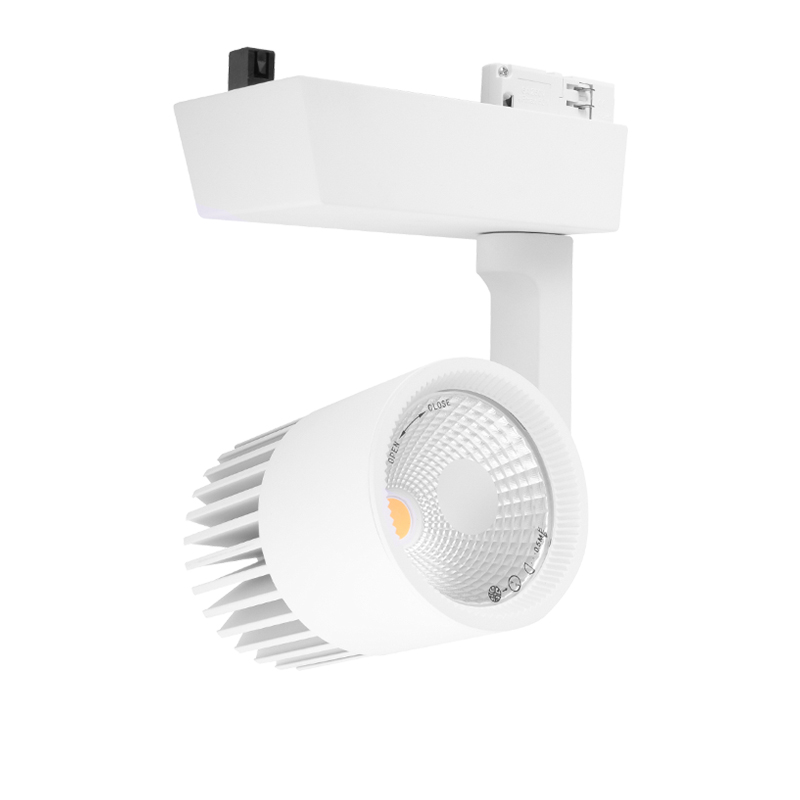

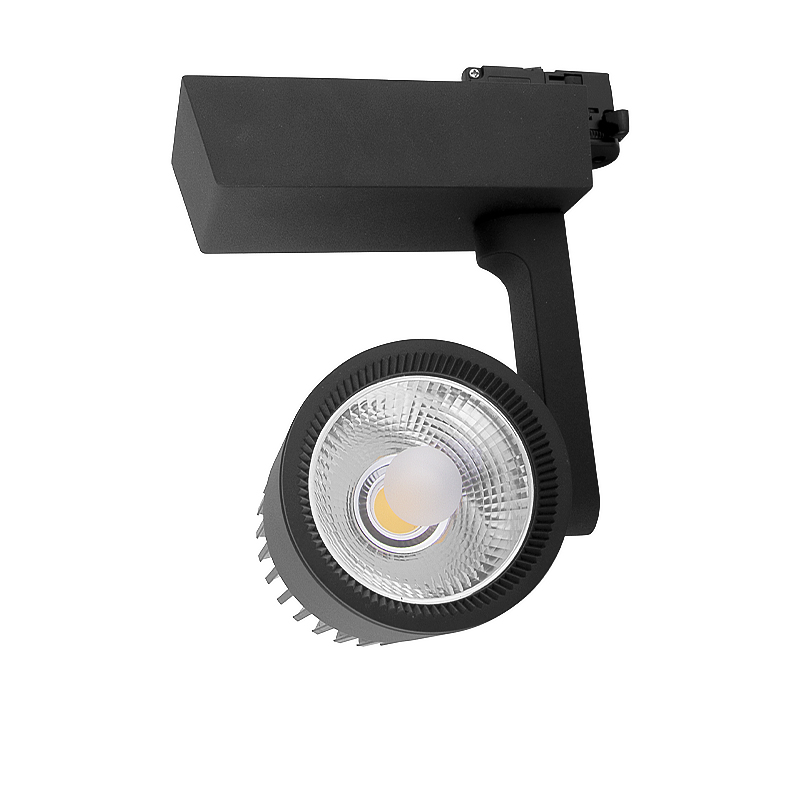

The aluminum housing and the three color options: RAL 9003 - signal white, RAL 9005 - jet black and RAL 9006 - white aluminium, give it a modern touch.
Chase track spotlight comes in several series, with a variety of add-ons and controls:
- Chase Non-DALI – represents the standard series for all projects in the retail sector
- Chase DALI DC - String – with DALI controls for light control and DC power lines for individual luminaire control
Features and Benefits
- Spotlight head has a rotation angle of 350° and pivots through 90°
- CRI 80 as standard, up to 98 for certain special color temperatures
- A wide range of optics – starting from narrow to wide beams: 15°, 30°, 45°, 60°, 90°
- Extended lifespan – 50,000h at 90% luminous flux
- Luminaire efficiency: 117lm/W @4000K
- Intelligent control through the DALI protocol
Similar products
Tulip S / Tulip M / Tulip L / Caster / Loki / Orion / Sola S TRK / Sola M TRK / Sola L TRK / Amyas TRK / Halo TRK
Interested in a custom EU made lighting solution for your project?
Contact us
Technical data
Dimensions
Ø106x168x219mm
Ø106x168x219mm
Working Temperature
-20C°... +45C° / -4F ... +113F
-20C°... +45C° / -4F ... +113F
Power
17W / 23W / 29W / 34W / 27W / 35W / 42W / 14W / 20W
17W / 23W / 29W / 34W / 27W / 35W / 42W / 14W / 20W
Housing color
RAL 9003 - Signal white
RAL 9005 - Jet Black
RAL 9006 - White aluminium
RAL 9003 - Signal white
RAL 9005 - Jet Black
RAL 9006 - White aluminium
Color Rendering
CRI 80 / CRI 90 / CRI 93 / CRI 98 / CRI 95
CRI 80 / CRI 90 / CRI 93 / CRI 98 / CRI 95
Color Temperature
AGI3000 / AGI3500 / AGI4000 / ART3000 / 2700K / 3000K / 3500K / 4000K / FAS / BVF / FBS / FZM / FSM / FSH / AMB2200
AGI3000 / AGI3500 / AGI4000 / ART3000 / 2700K / 3000K / 3500K / 4000K / FAS / BVF / FBS / FZM / FSM / FSH / AMB2200
Protection class
Safety Class 1
Safety Class 1
IK Code
IK02
IK02
IP Factor
IP20
IP20
Housing materials
Aluminium & Glass
Aluminium & Glass
Applications & References
Grocery & Supermarket
Selling groceries is a highly competitive business. Consumers have a lot of options on their hands, from small corner shops and specialty stores to large hypermarkets and even online shopping. It’s no wonder that the new competitive edge for retailers, is the customer experience.
Lighting has the power to transform the customer experience and therefore influencing purchases. Light can attract attention, guide the eyes and the footsteps and showcase products at their best in full-color, mouth-watering shades.
> Read more
Retail
Lighting influences desire, purchases and the memory of the shopping experience.
Light is powerful. More powerful than any of us think. In the retail sector light is a decisive factor in helping customers browse, choose, buy and afterward, remember fondly the shopping experience. They may not be able to explain what it was that enchanted them, but we know: it’s the light. Because in retail, the way you showcase items, the visual part of the experience, is one of the most important.
> Read more
DIY
Lighting for DIY retailers is similar to that of general retail - in that the purpose of the lighting system is to create a differentiating customer experience and at the same time, trigger purchase impulses to increase revenue.
However, given their sheers size, the type of luminaires used differ from smaller footprint retailers. Here, continuous line or trunking systems are recommended, because they allow for maximum flexibility and, most importantly, simplicity.
> Read moreLDT Range
| Product code | Lumens | Efficiency | CCT | Download |
|---|---|---|---|---|
| 104513 Chase S35006/AGI3000/17W/93/A15 | 985 | 58 | AGI3000 | LDT |
| 104514 Chase S35006/AGI3500/17W/93/A15 | 1050 | 62 | AGI3500 | LDT |
| 104515 Chase S35006/AGI4000/17W/93/A15 | 1115 | 66 | AGI4000 | LDT |
| 104519 Chase S35006/AGI3000/17W/93/A45 | 985 | 58 | AGI3000 | LDT |
| 104520 Chase S35006/AGI3500/17W/93/A45 | 1050 | 62 | AGI3500 | LDT |
| 104521 Chase S35006/AGI4000/17W/93/A45 | 1115 | 66 | AGI4000 | LDT |
| 104522 Chase S35006/AGI3000/17W/93/A60 | 985 | 58 | AGI3000 | LDT |
| 104523 Chase S35006/AGI3500/17W/93/A60 | 1050 | 62 | AGI3500 | LDT |
| 104524 Chase S35006/AGI4000/17W/93/A60 | 1115 | 66 | AGI4000 | LDT |
| 104525 Chase S35013/AGI3000/17W/93/A90 | 985 | 58 | AGI3000 | LDT |
| 104526 Chase S35013/AGI3500/17W/93/A90 | 1050 | 62 | AGI3500 | LDT |
| 104527 Chase S35013/AGI4000/17W/93/A90 | 1115 | 66 | AGI4000 | LDT |
| 104531 Chase S35006/AGI3000/23W/93/A15 | 1330 | 58 | AGI3000 | LDT |
| 104532 Chase S35006/AGI3500/23W/93/A15 | 1440 | 63 | AGI3500 | LDT |
| 104533 Chase S35006/AGI4000/23W/93/A15 | 1550 | 68 | AGI4000 | LDT |
| 104534 Chase S35006/AGI3000/23W/93/A30 | 1330 | 58 | AGI3000 | LDT |
| 104535 Chase S35006/AGI3500/23W/93/A30 | 1440 | 63 | AGI3500 | LDT |
| 104536 Chase S35006/AGI4000/23W/93/A30 | 1550 | 68 | AGI4000 | LDT |
| 104537 Chase S35006/AGI3000/23W/93/A45 | 1330 | 58 | AGI3000 | LDT |
| 104538 Chase S35006/AGI3500/23W/93/A45 | 1440 | 63 | AGI3500 | LDT |
| 104539 Chase S35006/AGI4000/23W/93/A45 | 1550 | 68 | AGI4000 | LDT |
| 104540 Chase S35006/AGI3000/23W/93/A60 | 1330 | 58 | AGI3000 | LDT |
| 104541 Chase S35006/AGI3500/23W/93/A60 | 1440 | 63 | AGI3500 | LDT |
| 104542 Chase S35006/AGI4000/23W/93/A60 | 1550 | 68 | AGI4000 | LDT |
| 104543 Chase S35013/AGI3000/23W/93/A90 | 1330 | 58 | AGI3000 | LDT |
| 104544 Chase S35013/AGI3500/23W/93/A90 | 1440 | 63 | AGI3500 | LDT |
| 104545 Chase S35013/AGI4000/23W/93/A90 | 1550 | 68 | AGI4000 | LDT |
| 104549 Chase S35006/AGI3000/29W/93/A15 | 1680 | 58 | AGI3000 | LDT |
| 104550 Chase S35006/AGI3500/29W/93/A15 | 1820 | 63 | AGI3500 | LDT |
| 104551 Chase S35006/AGI4000/29W/93/A15 | 1960 | 68 | AGI4000 | LDT |
| 104552 Chase S35006/AGI3000/29W/93/A30 | 1680 | 58 | AGI3000 | LDT |
| 104553 Chase S35006/AGI3500/29W/93/A30 | 1820 | 63 | AGI3500 | LDT |
| 104554 Chase S35006/AGI4000/29W/93/A30 | 1960 | 68 | AGI4000 | LDT |
| 104555 Chase S35006/AGI3000/29W/93/A45 | 1680 | 58 | AGI3000 | LDT |
| 104556 Chase S35006/AGI3500/29W/93/A45 | 1820 | 63 | AGI3500 | LDT |
| 104557 Chase S35006/AGI4000/29W/93/A45 | 1960 | 68 | AGI4000 | LDT |
| 104558 Chase S35006/AGI3000/29W/93/A60 | 1680 | 58 | AGI3000 | LDT |
| 104559 Chase S35006/AGI3500/29W/93/A60 | 1820 | 63 | AGI3500 | LDT |
| 104560 Chase S35006/AGI4000/29W/93/A60 | 1960 | 68 | AGI4000 | LDT |
| 104561 Chase S35013/AGI3000/29W/93/A90 | 1680 | 58 | AGI3000 | LDT |
| 104562 Chase S35013/AGI3500/29W/93/A90 | 1820 | 63 | AGI3500 | LDT |
| 104563 Chase S35013/AGI4000/29W/93/A90 | 1960 | 68 | AGI4000 | LDT |
| 104567 Chase S35006/AGI3000/34W/93/A15 | 1900 | 56 | AGI3000 | LDT |
| 104568 Chase S35006/AGI3500/34W/93/A15 | 1995 | 59 | AGI3500 | LDT |
| 104569 Chase S35006/AGI4000/34W/93/A15 | 2095 | 62 | AGI4000 | LDT |
| 104570 Chase S35006/AGI3000/34W/93/A30 | 1900 | 56 | AGI3000 | LDT |
| 104571 Chase S35006/AGI3500/34W/93/A30 | 1995 | 59 | AGI3500 | LDT |
| 104572 Chase S35006/AGI4000/34W/93/A30 | 2095 | 62 | AGI4000 | LDT |
| 104573 Chase S35006/AGI3000/34W/93/A45 | 1900 | 56 | AGI3000 | LDT |
| 104574 Chase S35006/AGI3500/34W/93/A45 | 1995 | 59 | AGI3500 | LDT |
| 104575 Chase S35006/AGI4000/34W/93/A45 | 2095 | 62 | AGI4000 | LDT |
| 104576 Chase S35006/AGI3000/34W/93/A60 | 1900 | 56 | AGI3000 | LDT |
| 104577 Chase S35006/AGI3500/34W/93/A60 | 1995 | 59 | AGI3500 | LDT |
| 104578 Chase S35006/AGI4000/34W/93/A60 | 2095 | 62 | AGI4000 | LDT |
| 104579 Chase S35013/AGI3000/34W/93/A90 | 1900 | 56 | AGI3000 | LDT |
| 104580 Chase S35013/AGI3500/34W/93/A90 | 1995 | 59 | AGI3500 | LDT |
| 104581 Chase S35013/AGI4000/34W/93/A90 | 2095 | 62 | AGI4000 | LDT |
| 104315 Chase S35006/ART3000/27W/98/A15 | 1995 | 74 | ART3000 | LDT |
| 104316 Chase S35006/ART3000/27W/98/A30 | 1995 | 74 | ART3000 | LDT |
| 104317 Chase S35006/ART3000/27W/98/A45 | 1995 | 74 | ART3000 | LDT |
| 104319 Chase S35006/ART3000/35W/98/A15 | 2425 | 70 | ART3000 | LDT |
| 104320 Chase S35006/ART3000/35W/98/A30 | 22425 | 641 | ART3000 | LDT |
| 104321 Chase S35006/ART3000/35W/98/A45 | 2425 | 70 | ART3000 | LDT |
| 104323 Chase S35006/ART3000/42W/98/A15 | 2755 | 66 | ART3000 | LDT |
| 104324 Chase S35006/ART3000/42W/98/A30 | 2755 | 66 | ART3000 | LDT |
| 104325 Chase S35006/ART3000/42W/98/A45 | 2755 | 66 | ART3000 | LDT |
| 104000 Chase S35006/2700/14W/80/A15 | 1485 | 107 | 2700 | LDT |
| 104001 Chase S35006/3000/14W/80/A15 | 1500 | 108 | 3000 | LDT |
| 104002 Chase S/35006/3500/14W/80/A15 | 1540 | 110 | 3500 | LDT |
| 104003 Chase S35006/4000/14W/80/A15 | 1570 | 113 | 4000 | LDT |
| 104005 Chase S35006/2700/14W/80/A30 | 1485 | 107 | 2700 | LDT |
| 104006 Chase S35006/3000/14W/80/A30 | 1500 | 108 | 3000 | LDT |
| 104007 Chase S/35006/3500/14W/80/A30 | 1540 | 110 | 3500 | LDT |
| 104008 Chase S35006/4000/14W/80/A30 | 1570 | 113 | 4000 | LDT |
| 104010 Chase S35006/2700/14W/80/A45 | 1485 | 107 | 2700 | LDT |
| 104011 Chase S35006/3000/14W/80/A45 | 1500 | 108 | 3000 | LDT |
| 104012 Chase S/35006/3500/14W/80/A45 | 1540 | 110 | 3500 | LDT |
| 104013 Chase S35006/4000/14W/80/A45 | 1570 | 113 | 4000 | LDT |
| 104364 Chase S35006/2700/14W/80/A60 | 1485 | 107 | 2700 | LDT |
| 104365 Chase S35006/3000/14W/80/A60 | 1500 | 108 | 3000 | LDT |
| 104366 Chase S/35006/3500/14W/80/A60 | 1540 | 110 | 3500 | LDT |
| 104367 Chase S35006/4000/14W/80/A60 | 1570 | 113 | 4000 | LDT |
| 104015 Chase S35013/2700/14W/80/A90 | 1485 | 107 | 2700 | LDT |
| 104016 Chase S35013/3000/14W/80/A90 | 1500 | 108 | 3000 | LDT |
| 104017 Chase S35013/3500/14W/80/A90 | 1540 | 110 | 3500 | LDT |
| 104018 Chase S35013/4000/14W/80/A90 | 1570 | 113 | 4000 | LDT |
| 104020 Chase S35006/2700/20W/80/A15 | 2080 | 104 | 2700 | LDT |
| 104021 Chase S35006/3000/20W/80/A15 | 2100 | 105 | 3000 | LDT |
| 104022 Chase S/35006/3500/20W/80/A15 | 2160 | 108 | 3500 | LDT |
| 104023 Chase S35006/4000/20W/80/A15 | 2200 | 110 | 4000 | LDT |
| 104025 Chase S35006/2700/20W/80/A30 | 2080 | 104 | 2700 | LDT |
| 104026 Chase S35006/3000/20W/80/A30 | 2100 | 105 | 3000 | LDT |
| 104027 Chase S/35006/3500/20W/80/A30 | 2160 | 108 | 3500 | LDT |
| 104028 Chase S35006/4000/20W/80/A30 | 2200 | 110 | 4000 | LDT |
| 104030 Chase S35006/2700/20W/80/A45 | 2080 | 104 | 2700 | LDT |
| 104031 Chase S35006/3000/20W/80/A45 | 2100 | 105 | 3000 | LDT |
| 104032 Chase S/35006/3500/20W/80/A45 | 2160 | 108 | 3500 | LDT |
| 104033 Chase S35006/4000/20W/80/A45 | 2200 | 110 | 4000 | LDT |
| 104369 Chase S35006/2700/20W/80/A60 | 2080 | 104 | 2700 | LDT |
| 104370 Chase S35006/3000/20W/80/A60 | 2100 | 105 | 3000 | LDT |
| 104371 Chase S/35006/3500/20W/80/A60 | 2160 | 108 | 3500 | LDT |
| 104372 Chase S35006/4000/20W/80/A60 | 2200 | 110 | 4000 | LDT |
| 104035 Chase S35013/2700/20W/80/A90 | 2080 | 104 | 2700 | LDT |
| 104036 Chase S35013/3000/20W/80/A90 | 2100 | 105 | 3000 | LDT |
| 104037 Chase S35013/3500/20W/80/A90 | 2160 | 108 | 3500 | LDT |
| 104038 Chase S35013/4000/20W/80/A90 | 2200 | 110 | 4000 | LDT |
| 104040 Chase S35006/2700/27W/80/A15 | 2945 | 110 | 2700 | LDT |
| 104041 Chase S35006/3000/27W/80/A15 | 2970 | 110 | 3000 | LDT |
| 104042 Chase S/35006/3500/27W/80/A15 | 3055 | 114 | 3500 | LDT |
| 104043 Chase S35006/4000/27W/80/A15 | 3135 | 117 | 4000 | LDT |
| 104045 Chase S35006/2700/27W/80/A30 | 2945 | 110 | 2700 | LDT |
| 104046 Chase S35006/3000/27W/80/A30 | 2970 | 110 | 3000 | LDT |
| 104047 Chase S/35006/3500/27W/80/A30 | 3055 | 114 | 3500 | LDT |
| 104048 Chase S35006/4000/27W/80/A30 | 3135 | 117 | 4000 | LDT |
| 104050 Chase S35006/2700/27W/80/A45 | 2945 | 110 | 2700 | LDT |
| 104051 Chase S35006/3000/27W/80/A45 | 2970 | 110 | 3000 | LDT |
| 104052 Chase S/35006/3500/27W/80/A45 | 3055 | 114 | 3500 | LDT |
| 104053 Chase S35006/4000/27W/80/A45 | 3135 | 117 | 4000 | LDT |
| 104055 Chase S35013/2700/27W/80/A90 | 2945 | 110 | 2700 | LDT |
| 104056 Chase S35013/3000/27W/80/A90 | 2970 | 110 | 3000 | LDT |
| 104057 Chase S35013/3500/27W/80/A90 | 3055 | 114 | 3500 | LDT |
| 104058 Chase S35013/4000/27W/80/A90 | 3135 | 117 | 4000 | LDT |
| 104060 Chase S35006/2700/35W/80/A15 | 3710 | 106 | 2700 | LDT |
| 104061 Chase S35006/3000/35W/80/A15 | 3745 | 107 | 3000 | LDT |
| 104062 Chase S/35006/3500/35W/80/A15 | 3815 | 109 | 3500 | LDT |
| 104063 Chase S35006/4000/35W/80/A15 | 3920 | 112 | 4000 | LDT |
| 104065 Chase S35006/2700/35W/80/A30 | 3710 | 106 | 2700 | LDT |
| 104066 Chase S35006/3000/35W/80/A30 | 3745 | 107 | 3000 | LDT |
| 104067 Chase S/35006/3500/35W/80/A30 | 3815 | 109 | 3500 | LDT |
| 104068 Chase S35006/4000/35W/80/A30 | 3920 | 112 | 4000 | LDT |
| 104070 Chase S35006/2700/35W/80/A45 | 3710 | 106 | 2700 | LDT |
| 104071 Chase S35006/3000/35W/80/A45 | 3745 | 107 | 3000 | LDT |
| 104072 Chase S/35006/3500/35W/80/A45 | 3815 | 109 | 3500 | LDT |
| 104073 Chase S35006/4000/35W/80/A45 | 3920 | 112 | 4000 | LDT |
| 104379 Chase S35006/2700/35W/80/A60 | 3710 | 106 | 2700 | LDT |
| 104380 Chase S35006/3000/35W/80/A60 | 3745 | 107 | 3000 | LDT |
| 104381 Chase S/35006/3500/35W/80/A60 | 3745 | 107 | 3500 | LDT |
| 104382 Chase S35006/4000/35W/80/A60 | 3920 | 112 | 4000 | LDT |
| 104075 Chase S35013/2700/35W/80/A90 | 3710 | 106 | 2700 | LDT |
| 104076 Chase S35013/3000/35W/80/A90 | 3745 | 107 | 3000 | LDT |
| 104077 Chase S35013/3500/35W/80/A90 | 3815 | 109 | 3500 | LDT |
| 104078 Chase S35013/4000/35W/80/A90 | 3920 | 112 | 4000 | LDT |
| 104080 Chase S35006/2700/42W/80/A15 | 4200 | 100 | 2700 | LDT |
| 104081 Chase S35006/3000/42W/80/A15 | 4200 | 100 | 3000 | LDT |
| 104082 Chase S/35006/3500/42W/80/A15 | 4330 | 104 | 3500 | LDT |
| 104083 Chase S35006/4000/42W/80/A15 | 4455 | 107 | 4000 | LDT |
| 104085 Chase S35006/2700/42W/80/A30 | 4200 | 100 | 2700 | LDT |
| 104086 Chase S35006/3000/42W/80/A30 | 4200 | 100 | 3000 | LDT |
| 104087 Chase S/35006/3500/42W/80/A30 | 4330 | 104 | 3500 | LDT |
| 104088 Chase S35006/4000/42W/80/A30 | 4455 | 107 | 4000 | LDT |
| 104090 Chase S35006/2700/42W/80/A45 | 4200 | 100 | 2700 | LDT |
| 104091 Chase S35006/3000/42W/80/A45 | 4200 | 100 | 3000 | LDT |
| 104092 Chase S/35006/3500/42W/80/A45 | 4330 | 104 | 3500 | LDT |
| 104093 Chase S35006/4000/42W/80/A45 | 4455 | 107 | 4000 | LDT |
| 104384 Chase S35006/2700/42W/80/A60 | 4200 | 100 | 2700 | LDT |
| 104385 Chase S35006/3000/42W/80/A60 | 4200 | 100 | 3000 | LDT |
| 104095 Chase S35013/2700/42W/80/A90 | 4200 | 100 | 2700 | LDT |
| 104096 Chase S35013/3000/42W/80/A90 | 4200 | 100 | 3000 | LDT |
| 104097 Chase S35013/3500/42W/80/A90 | 4330 | 104 | 3500 | LDT |
| 104098 Chase S35013/4000/42W/80/A90 | 4455 | 107 | 4000 | LDT |
| 304028 Chase S35006/2700/14W/80/A15 | 1485 | 107 | 2700 | LDT |
| 304029 Chase S35006/3000/14W/80/A15 | 1500 | 108 | 3000 | LDT |
| 304030 Chase S/35006/3500/14W/80/A15 | 1540 | 110 | 3500 | LDT |
| 304031 Chase S35006/4000/14W/80/A15 | 1570 | 113 | 4000 | LDT |
| 304032 Chase S35006/2700/14W/80/A30 | 1485 | 107 | 2700 | LDT |
| 304033 Chase S35006/3000/14W/80/A30 | 1500 | 108 | 3000 | LDT |
| 304034 Chase S/35006/3500/14W/80/A30 | 1540 | 110 | 3500 | LDT |
| 304036 Chase S35006/2700/14W/80/A45 | 1485 | 107 | 2700 | LDT |
| 304037 Chase S35006/3000/14W/80/A45 | 1500 | 108 | 3000 | LDT |
| 304038 Chase S/35006/3500/14W/80/A45 | 1540 | 110 | 3500 | LDT |
| 304039 Chase S35006/4000/14W/80/A45 | 1570 | 113 | 4000 | LDT |
| 304044 Chase S35006/2700/14W/80/A60 | 1485 | 107 | 2700 | LDT |
| 304045 Chase S35006/3000/14W/80/A60 | 1500 | 108 | 3000 | LDT |
| 304046 Chase S/35006/3500/14W/80/A60 | 1540 | 110 | 3500 | LDT |
| 304047 Chase S35006/4000/14W/80/A60 | 1570 | 113 | 4000 | LDT |
| 304040 Chase S35013/2700/14W/80/A90 | 1485 | 107 | 2700 | LDT |
| 304041 Chase S35013/3000/14W/80/A90 | 1500 | 108 | 3000 | LDT |
| 304042 Chase S35013/3500/14W/80/A90 | 1540 | 110 | 3500 | LDT |
| 304043 Chase S35013/4000/14W/80/A90 | 1570 | 113 | 4000 | LDT |
| 304004 Chase S35006/2700/27W/80/A15 | 2945 | 110 | 2700 | LDT |
| 304005 Chase S35006/3000/27W/80/A15 | 2970 | 110 | 3000 | LDT |
| 304006 Chase S/35006/3500/27W/80/A15 | 3055 | 114 | 3500 | LDT |
| 304007 Chase S35006/4000/27W/80/A15 | 3135 | 117 | 4000 | LDT |
| 304008 Chase S35006/2700/27W/80/A30 | 2945 | 110 | 2700 | LDT |
| 304009 Chase S35006/3000/27W/80/A30 | 2970 | 110 | 3000 | LDT |
| 304010 Chase S/35006/3500/27W/80/A30 | 3055 | 114 | 3500 | LDT |
| 304011 Chase S35006/4000/27W/80/A30 | 3135 | 117 | 4000 | LDT |
| 304012 Chase S35006/2700/27W/80/A45 | 2945 | 110 | 2700 | LDT |
| 304013 Chase S35006/3000/27W/80/A45 | 2970 | 110 | 3000 | LDT |
| 304020 Chase S35006/2700/27W/80/A60 | 2945 | 110 | 2700 | LDT |
| 304021 Chase S35006/3000/27W/80/A60 | 2970 | 110 | 3000 | LDT |
| 304022 Chase S/35006/3500/27W/80/A60 | 3055 | 114 | 3500 | LDT |
| 304023 Chase S35006/4000/27W/80/A60 | 3135 | 117 | 4000 | LDT |
| 304016 Chase S35013/2700/27W/80/A90 | 2945 | 110 | 2700 | LDT |
| 304017 Chase S35013/3000/27W/80/A90 | 2970 | 110 | 3000 | LDT |
| 304018 Chase S35013/3500/27W/80/A90 | 3055 | 114 | 3500 | LDT |
| 304019 Chase S35013/4000/27W/80/A90 | 3135 | 117 | 4000 | LDT |
| 104294 Chase S35006/FAS/27W/90/A15 | 2080 | 78 | FAS | LDT |
| 104295 Chase S35006/FAS/27W/90/A30 | 2080 | 78 | FAS | LDT |
| 104296 Chase S35006/FAS/27W/90/A45 | 2080 | 78 | FAS | LDT |
| 104297 Chase S35006/FAS/35W/90/A15 | 2535 | 73 | FAS | LDT |
| 104298 Chase S35006/FAS/35W/90/A30 | 2535 | 73 | FAS | LDT |
| 104299 Chase S35006/FAS/35W/90/A45 | 2535 | 73 | FAS | LDT |
| 104300 Chase S35006/FAS/42W/90/A15 | 2930 | 70 | FAS | LDT |
| 104301 Chase S35006/FAS/42W/90/A30 | 2930 | 70 | FAS | LDT |
| 104302 Chase S35006/FAS/42W/90/A45 | 2930 | 70 | FAS | LDT |
| 104447 Chase S35006/FAS/27W/90/A60 | 2080 | 78 | FAS | LDT |
| 104448 Chase S35006/FAS/27W/90/A90 | 2080 | 78 | FAS | LDT |
| 104450 Chase S35006/FAS/35W/90/A60 | 2535 | 73 | FAS | LDT |
| 104451 Chase S35006/FAS/35W/90/A90 | 2535 | 73 | FAS | LDT |
| 104453 Chase S35006/FAS/42W/90/A60 | 2930 | 70 | FAS | LDT |
| 104454 Chase S35006/FAS/42W/90/A90 | 2930 | 70 | FAS | LDT |
| 104455 Chase S35006/BVF/14W/80/A15 | 1080 | 78 | BVF | LDT |
| 104456 Chase S35006/FBS/14W/80/A15 | 855 | 62 | FBS | LDT |
| 104457 Chase S35006/FZM/14W/80/A15 | 800 | 58 | FZM | LDT |
| 104458 Chase S35006/FSM/14W/80/A15 | 800 | 58 | FSM | LDT |
| 104487 Chase S35006/FSH/14W/80/A15 | 1180 | 85 | FSH | LDT |
| 104459 Chase S35006/BVF/14W/80/A30 | 1080 | 78 | BVF | LDT |
| 104460 Chase S35006/FBS/14W/80/A30 | 855 | 62 | FBS | LDT |
| 104461 Chase S35006/FZM/14W/80/A30 | 800 | 58 | FZM | LDT |
| 104462 Chase S35006/FSM/14W/80/A30 | 800 | 58 | FSM | LDT |
| 104488 Chase S35006/FSH/14W/80/A30 | 1180 | 85 | FSH | LDT |
| 104463 Chase S35006/BVF/14W/80/A45 | 1080 | 78 | BVF | LDT |
| 104464 Chase S35006/FBS/14W/80/A45 | 855 | 62 | FBS | LDT |
| 104465 Chase S35006/FZM/14W/80/A45 | 800 | 58 | FZM | LDT |
| 104466 Chase S35006/FSM/14W/80/A45 | 800 | 58 | FSM | LDT |
| 104489 Chase S35006/FSH/14W/80/A45 | 1180 | 85 | FSH | LDT |
| 104467 Chase S35006/BVF/14W/80/A60 | 1080 | 78 | BVF | LDT |
| 104468 Chase S35006/FBS/14W/80/A60 | 855 | 62 | FBS | LDT |
| 104469 Chase S35006/FZM/14W/80/A60 | 800 | 58 | FZM | LDT |
| 104470 Chase S35006/FSM/14W/80/A60 | 800 | 58 | FSM | LDT |
| 104483 Chase S35006/FSH/14W/80/A60 | 1180 | 85 | FSH | LDT |
| 104490 Chase S35006/BVF/20W/80/A15 | 1540 | 77 | BVF | LDT |
| 104491 Chase S35006/FBS/20W/80/A15 | 1220 | 61 | FBS | LDT |
| 104492 Chase S35006/FZM/20W/80/A15 | 1140 | 57 | FZM | LDT |
| 104493 Chase S35006/FSM/20W/80/A15 | 1140 | 57 | FSM | LDT |
| 104506 Chase S35006/FSH/20W/80/A15 | 1680 | 84 | FSH | LDT |
| 104494 Chase S35006/BVF/20W/80/A30 | 1540 | 77 | BVF | LDT |
| 104495 Chase S35006/FBS/20W/80/A30 | 1220 | 61 | FBS | LDT |
| 104496 Chase S35006/FZM/20W/80/A30 | 1140 | 57 | FZM | LDT |
| 104497 Chase S35006/FSM/20W/80/A30 | 1140 | 57 | FSM | LDT |
| 104507 Chase S35006/FSH/20W/80/A30 | 1680 | 84 | FSH | LDT |
| 104498 Chase S35006/BVF/20W/80/A45 | 1540 | 77 | BVF | LDT |
| 104499 Chase S35006/FBS/20W/80/A45 | 1220 | 61 | FBS | LDT |
| 104500 Chase S35006/FZM/20W/80/A45 | 1140 | 57 | FZM | LDT |
| 104501 Chase S35006/FSM/20W/80/A45 | 1140 | 57 | FSM | LDT |
| 104508 Chase S35006/FSH/20W/80/A45 | 1680 | 84 | FSH | LDT |
| 104502 Chase S35006/BVF/20W/80/A60 | 1540 | 77 | BVF | LDT |
| 104503 Chase S35006/FBS/20W/80/A60 | 1220 | 61 | FBS | LDT |
| 104504 Chase S35006/FZM/20W/80/A60 | 1140 | 57 | FZM | LDT |
| 104505 Chase S35006/FSM/20W/80/A60 | 1140 | 57 | FSM | LDT |
| 104509 Chase S35006/FSH/20W/80/A60 | 1680 | 84 | FSH | LDT |
| 104240 Chase S35006/BVF/27W/80/A15 | 2065 | 77 | BVF | LDT |
| 104241 Chase S35006/FBS/27W/80/A15 | 1635 | 61 | FBS | LDT |
| 104243 Chase S35006/FSM/27W/80/A15 | 1530 | 57 | FSM | LDT |
| 104327 Chase S35006/FSH/27W/80/A15 | 2250 | 84 | FSH | LDT |
| 104244 Chase S35006/BVF/27W/80/A30 | 2065 | 77 | BVF | LDT |
| 104245 Chase S35006/FBS/27W/80/A30 | 1635 | 61 | FBS | LDT |
| 104246 Chase S35006/FZM/27W/80/A30 | 1530 | 57 | FZM | LDT |
| 104247 Chase S35006/FSM/27W/80/A30 | 1530 | 57 | FSM | LDT |
| 104328 Chase S35006/FSH/27W/80/A30 | 2250 | 84 | FSH | LDT |
| 104248 Chase S35006/BVF/27W/80/A45 | 2065 | 77 | BVF | LDT |
| 104249 Chase S35006/FBS/27W/80/A45 | 1635 | 61 | FBS | LDT |
| 104250 Chase S35006/FZM/27W/80/A45 | 1530 | 57 | FZM | LDT |
| 104251 Chase S35006/FSM/27W/80/A45 | 1530 | 57 | FSM | LDT |
| 104329 Chase S35006/FSH/27W/80/A45 | 2250 | 84 | FSH | LDT |
| 104471 Chase S35006/BVF/27W/80/A60 | 2065 | 77 | BVF | LDT |
| 104472 Chase S35006/FBS/27W/80/A60 | 1635 | 61 | FBS | LDT |
| 104473 Chase S35006/FZM/27W/80/A60 | 1530 | 57 | FZM | LDT |
| 104474 Chase S35006/FSM/27W/80/A60 | 1530 | 57 | FSM | LDT |
| 104484 Chase S35006/FSH/27W/80/A60 | 2250 | 84 | FSH | LDT |
| 104252 Chase S35006/BVF/35W/80/A15 | 2590 | 74 | BVF | LDT |
| 104253 Chase S35006/FBS/35W/80/A15 | 2115 | 61 | FBS | LDT |
| 104254 Chase S35006/FZM/35W/80/A15 | 1980 | 57 | FZM | LDT |
| 104255 Chase S35006/FSM/35W/80/A15 | 1980 | 57 | FSM | LDT |
| 104331 Chase S35006/FSH/35W/80/A15 | 2755 | 79 | FSH | LDT |
| 104256 Chase S35006/BVF/35W/80/A30 | 2590 | 74 | BVF | LDT |
| 104257 Chase S35006/FBS/35W/80/A30 | 2115 | 61 | FBS | LDT |
| 104258 Chase S35006/FZM/35W/80/A30 | 1980 | 57 | FZM | LDT |
| 104259 Chase S35006/FSM/35W/80/A30 | 1980 | 57 | FSM | LDT |
| 104332 Chase S35006/FSH/35W/80/A30 | 2755 | 79 | FSH | LDT |
| 104260 Chase S35006/BVF/35W/80/A45 | 2590 | 74 | BVF | LDT |
| 104261 Chase S35006/FBS/35W/80/A45 | 2115 | 61 | FBS | LDT |
| 104262 Chase S35006/FZM/35W/80/A45 | 1980 | 57 | FZM | LDT |
| 104263 Chase S35006/FSM/35W/80/A45 | 1980 | 57 | FSM | LDT |
| 104333 Chase S35006/FSH/35W/80/A45 | 2755 | 79 | FSH | LDT |
| 104475 Chase S35006/BVF/35W/80/A60 | 2590 | 74 | BVF | LDT |
| 104476 Chase S35006/FBS/35W/80/A60 | 2115 | 61 | FBS | LDT |
| 104477 Chase S35006/FZM/35W/80/A60 | 1980 | 57 | FZM | LDT |
| 104478 Chase S35006/FSM/35W/80/A60 | 1980 | 57 | FSM | LDT |
| 104485 Chase S35006/FSH/35W/80/A60 | 2755 | 79 | FSH | LDT |
| 104264 Chase S35006/BVF/42W/80/A15 | 2870 | 69 | BVF | LDT |
| 104265 Chase S35006/FBS/42W/80/A15 | 2450 | 59 | FBS | LDT |
| 104266 Chase S35006/FZM/42W/80/A15 | 2325 | 56 | FZM | LDT |
| 104267 Chase S35006/FSM/42W/80/A15 | 2325 | 56 | FSM | LDT |
| 104335 Chase S35006/FSH/42W/80/A15 | 3155 | 76 | FSH | LDT |
| 104336 Chase S35006/FSH/42W/80/A30 | 3155 | 76 | FSH | LDT |
| 104272 Chase S35006/BVF/42W/80/A45 | 2870 | 69 | BVF | LDT |
| 104273 Chase S35006/FBS/42W/80/A45 | 2450 | 59 | FBS | LDT |
| 104274 Chase S35006/FZM/42W/80/A45 | 2325 | 56 | FZM | LDT |
| 104275 Chase S35006/FSM/42W/80/A45 | 2325 | 56 | FSM | LDT |
| 104337 Chase S35006/FSH/42W/80/A45 | 3155 | 76 | FSH | LDT |
| 104479 Chase S35006/BVF/42W/80/A60 | 2870 | 69 | BVF | LDT |
| 104480 Chase S35006/FBS/42W/80/A60 | 2450 | 59 | FBS | LDT |
| 104481 Chase S35006/FZM/42W/80/A60 | 2325 | 56 | FZM | LDT |
| 104482 Chase S35006/FSM/42W/80/A60 | 2325 | 56 | FSM | LDT |
| 104486 Chase S35006/FSH/42W/80/A60 | 3155 | 76 | FSH | LDT |
| 104374 Chase S35006/2700/27W/80/A60 | 2945 | 110 | 2700 | LDT |
| 104375 Chase S35006/3000/27W/80/A60 | 2970 | 110 | 3000 | LDT |
| 104376 Chase S35006/3500/27W/80/A60 | 2950 | 110 | 3500 | LDT |
| 104377 Chase S35006/4000/27W/80/A60 | 3005 | 112 | 4000 | LDT |
| 104242 Chase S35006/FZM/27W/80/A15 | 1530 | 57 | FZM | LDT |
| 104268 Chase S35006/BVF/42W/80/A30 | 2870 | 69 | BVF | LDT |
| 104269 Chase S35006/FBS/42W/80/A30 | 2450 | 59 | FBS | LDT |
| 104270 Chase S35006/FZM/42W/80/A30 | 2325 | 56 | FZM | LDT |
| 104271 Chase S35006/FSM/42W/80/A30 | 2325 | 56 | FSM | LDT |
| 104386 Chase S35006/3500/42W/80/A60 | 4330 | 104 | 3500 | LDT |
| 104387 Chase S35006/4000/42W/80/A60 | 4455 | 107 | 4000 | LDT |
| 304014 Chase S35006/3500/27W/80/A45 | 3055 | 114 | 3500 | LDT |
| 304015 Chase S35006/4000/27W/80/A45 | 3535 | 131 | 4000 | LDT |
| 304035 Chase S35006/4000/14W/80/A30 | 1570 | 113 | 4000 | LDT |
| 104670 Chase S35006/AMB2200/14W/80/A45 | 1020 | 73 | AMB2200 | LDT |
| 104671 Chase S35013/AMB2200/14W/80/A90 | 1020 | 73 | AMB2200 | LDT |
| 104688 Chase S35006/AMB2200/14W/80/A60 | 1020 | 73 | AMB2200 | LDT |
| 104669 Chase S35006/AMB2200/14W/80/A30 | 1020 | 73 | AMB2200 | LDT |
| 104674 Chase S35006/AMB2200/20W/80/A45 | 1410 | 71 | AMB2200 | LDT |
| 104675 Chase S35013/AMB2200/20W/80/A90 | 1410 | 71 | AMB2200 | LDT |
| 104689 Chase S35006/AMB2200/20W/80/A60 | 1410 | 71 | AMB2200 | LDT |
| 104668 Chase S35006/AMB2200/14W/80/A15 | 1020 | 73 | AMB2200 | LDT |
| 104672 Chase S35006/AMB2200/20W/80/A15 | 1410 | 71 | AMB2200 | LDT |
| 104673 Chase S35006/AMB2200/20W/80/A30 | 1410 | 71 | AMB2200 | LDT |
| 104678 Chase S35006/AMB2200/27W/80/A45 | 1870 | 70 | AMB2200 | LDT |
| 104679 Chase S35013/AMB2200/27W/80/A90 | 1870 | 70 | AMB2200 | LDT |
| 104690 Chase S35006/AMB2200/27W/80/A60 | 1870 | 70 | AMB2200 | LDT |
| 104676 Chase S35006/AMB2200/27W/80/A15 | 1870 | 70 | AMB2200 | LDT |
| 104677 Chase S35006/AMB2200/27W/80/A30 | 1870 | 70 | AMB2200 | LDT |
| 104681 Chase S35006/AMB2200/35W/80/A30 | 2585 | 74 | AMB2200 | LDT |
| 104682 Chase S35006/AMB2200/35W/80/A45 | 2585 | 74 | AMB2200 | LDT |
| 104683 Chase S35013/AMB2200/35W/80/A90 | 2585 | 74 | AMB2200 | LDT |
| 104691 Chase S35006/AMB2200/35W/80/A60 | 2585 | 74 | AMB2200 | LDT |
| 104680 Chase S35006/AMB2200/35W/80/A15 | 2585 | 74 | AMB2200 | LDT |
| 104686 Chase S35006/AMB2200/42W/80/A45 | 2930 | 70 | AMB2200 | LDT |
| 104687 Chase S35013/AMB2200/42W/80/A90 | 2930 | 70 | AMB2200 | LDT |
| 104692 Chase S35006/AMB2200/42W/80/A60 | 2930 | 70 | AMB2200 | LDT |
| 104684 Chase S35006/AMB2200/42W/80/A15 | 2930 | 70 | AMB2200 | LDT |
| 104685 Chase S35006/AMB2200/42W/80/A30 | 2930 | 70 | AMB2200 | LDT |
| 304670 Chase S35006/AMB2200/14W/80/A45 | 1020 | 73 | AMB2200 | LDT |
| 304671 Chase S35013/AMB2200/14W/80/A90 | 1020 | 73 | AMB2200 | LDT |
| 304688 Chase S35006/AMB2200/14W/80/A60 | 1020 | 73 | AMB2200 | LDT |
| 304668 Chase S35006/AMB2200/14W/80/A15 | 1020 | 73 | AMB2200 | LDT |
| 304669 Chase S35006/AMB2200/14W/80/A30 | 1020 | 73 | AMB2200 | LDT |
| 304678 Chase S35006/AMB2200/27W/80/A45 | 1870 | 70 | AMB2200 | LDT |
| 304679 Chase S35013/AMB2200/27W/80/A90 | 1870 | 70 | AMB2200 | LDT |
| 304689 Chase S35006/AMB2200/27W/80/A60 | 1870 | 70 | AMB2200 | LDT |
| 304676 Chase S35006/AMB2200/27W/80/A15 | 1870 | 70 | AMB2200 | LDT |
| 304677 Chase S35006/AMB2200/27W/80/A30 | 1870 | 70 | AMB2200 | LDT |
