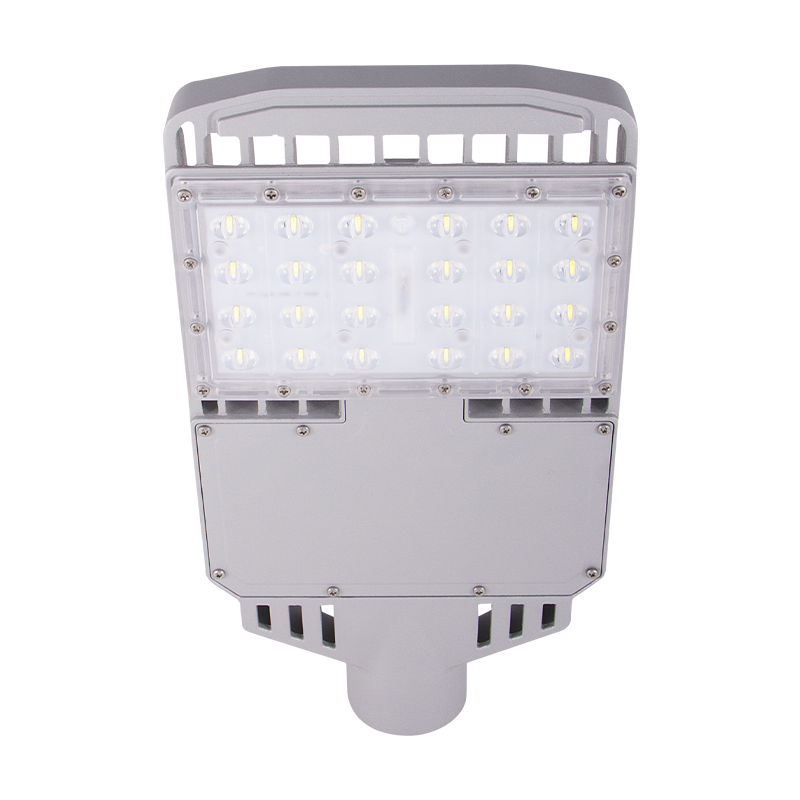

Sayer

Product description

  • Available in one form factor: 1M (1 module)
  • Two temperatures: 4000K and 6500K
  • Very wide lens angle: 150 (degrees)
  • Good color rendering index: 80
  • Efficiency at 4000K: 88lm/W
  • Protection factor: IP65

Applications

Street lights, outdoor parking places


Ask for a quote

Technical data

Dimensions
192x371x88 mm
Working Temperature
-40C...+55C/-40F...+131F
Power
31W
Housing color
RAL 9006 - White aluminium
Color Rendering
CRI 80
Color Temperature
4000K / 6500K
Protection class
Safety Class 1
IK Code
IK08
IP Factor
IP65
Housing materials
Aluminium & Polycarbonate

LDT Range

Product code Lumens Efficiency CCT Download
141010 Sayer LD30R/4000/31W/80/A150 2710 88 4000 LDT
141011 Sayer LD30R/6500/31W/80/A150 2815 91 6500 LDT

Technical Specifications

Sayer Datasheet
