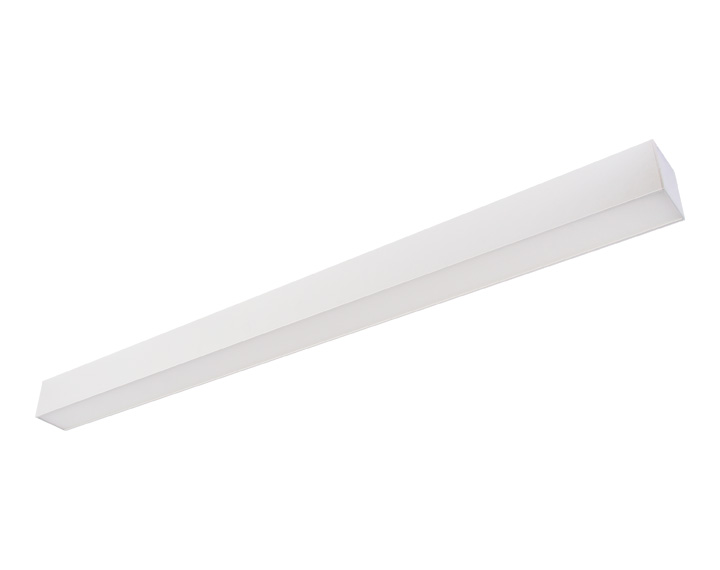

Quartz R/S - Linear luminaire
Product description
- Available in three form factors:60cm 120cm and 150cm
- Three temperatures: 3000K, 4000K and 5000K

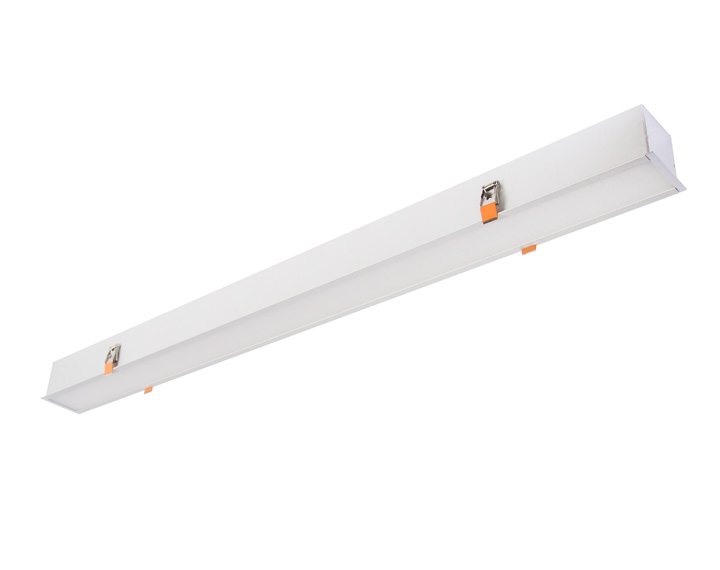

- Three types of mounting: recessed (Quartz R), surface-mounted and suspended (Quartz S)
- With IP40 protection
- 110 (degrees) lens angle
- Color rendering index: 80
Applications
Grocery & supermarket, Office, Healthcare, Hospitality
Technical data
Dimensions
1454x76.9x73.9 mm / 1168x76.9x73.9 mm / 596x76.9x73.9 mm
1454x76.9x73.9 mm / 1168x76.9x73.9 mm / 596x76.9x73.9 mm
Working Temperature
-20C°... +45C° / -4F ... +113F
-20C°... +45C° / -4F ... +113F
Housing color
Anodised grey
Anodised grey
Color Rendering
CRI 80
CRI 80
Protection class
Safety Class 1
Safety Class 1
IK Code
IK04
IK04
IP Factor
IP40
IP40
Housing materials
Aluminium & Polycarbonate
Aluminium & Polycarbonate
